USB Microscope for PCB and Electronics Inspection
Inspect solder joints, traces, pads, components, contamination, and rework results with magnified image capture.
Overview
Component miniaturization demands high-precision visual inspection. Smart G-Scope enables engineers and quality technicians to inspect solder joints, traces, vias, and SMD components at magnification levels suitable for detecting microscopic defects.
It can help identify solder bridges, cracks, contamination, component misalignment, and wetting issues that may cause failures in production or in the field. Documenting defects supports traceability and continuous process improvement.
The device’s portability allows use both on production lines and in failure analysis labs, adapting to different industrial environments.
Recommended Smart G-Scope setup
- Use a precision stand for stable board positioning and repeatable images.
- Adjust illumination angle to reduce glare from solder mask and metal pads.
- Use software capture for incoming inspection, rework records, and failure-analysis notes.
- Calibrate measurements when dimensional checks are needed for internal reporting.
What you can observe
- Solder bridges, solder balls, insufficient wetting, cracks, and residues.
- Component alignment, pads, vias, labels, and fine traces.
- Contamination or handling marks that need quality review.
- Before/after images from rework or process changes.
Typical workflow
- 1 Place the board on a stable support and set the inspection area.
- 2 Choose lighting that reveals solder shape without harsh reflections.
- 3 Capture representative defects with lot, board, and location references.
- 4 Compare images across lots or after rework to document process improvements.
Key benefits
- Detection of microcracks, solder bridges, and solder balls
- Inspection of BGA, QFN, and micro-components
- Defect documentation for quality reports
- Failure analysis and lot traceability
- Usable in production and R&D labs
Best for
- Electronics QA, rework benches, incoming inspection, R&D labs, and service teams.
- Teams that need fast visual evidence without a full machine-vision station.
Not ideal for
- Inspecting hidden BGA joints or internal board layers without X-ray or sectioning.
- Replacing certified metrology where standards-grade tolerances are required.

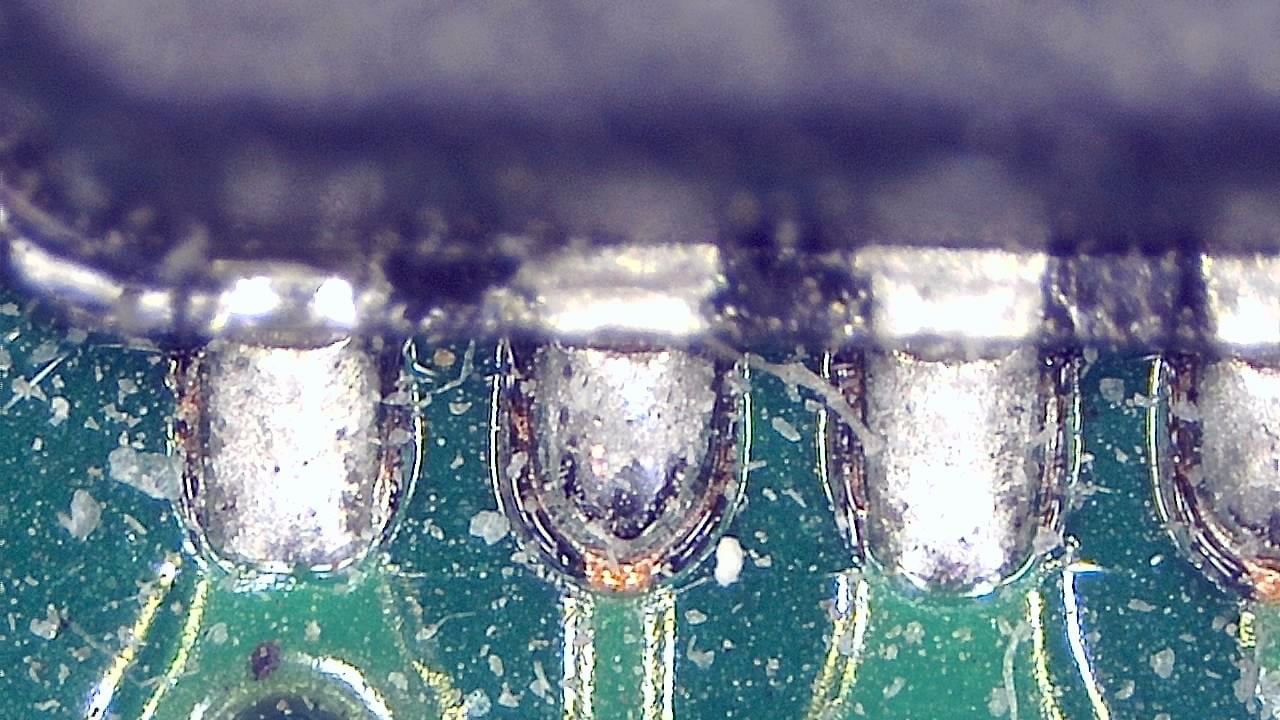

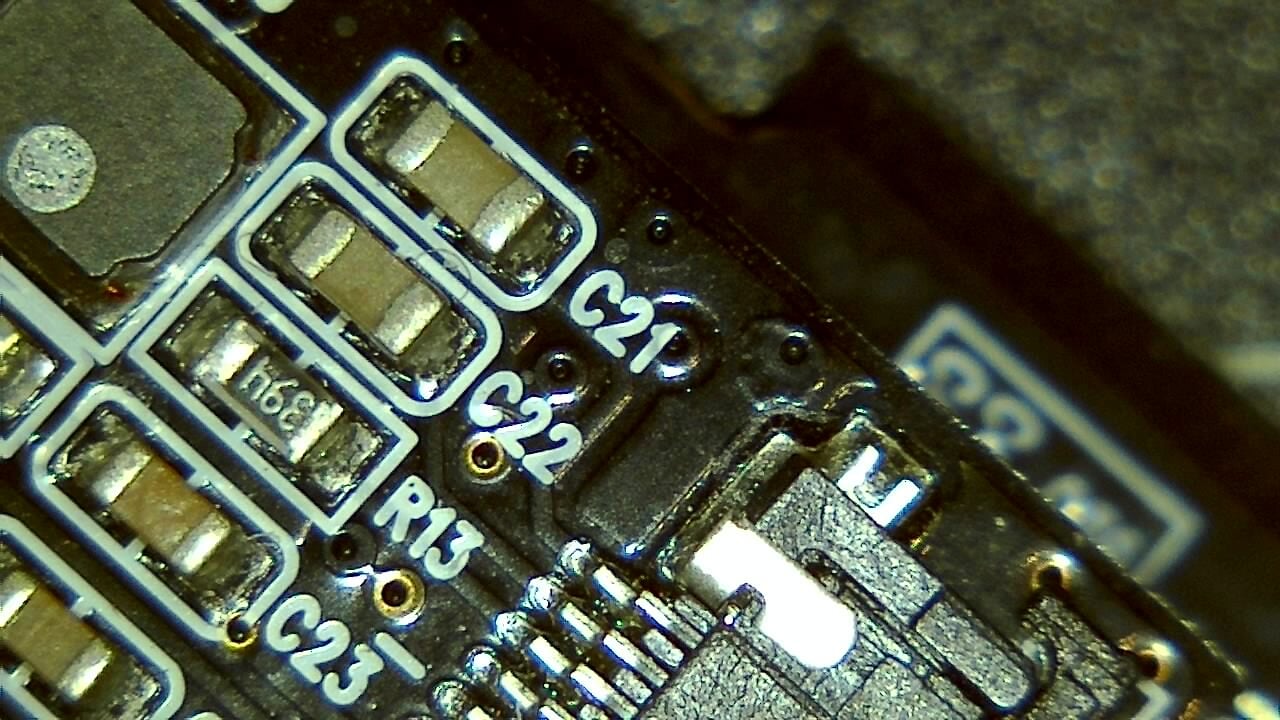

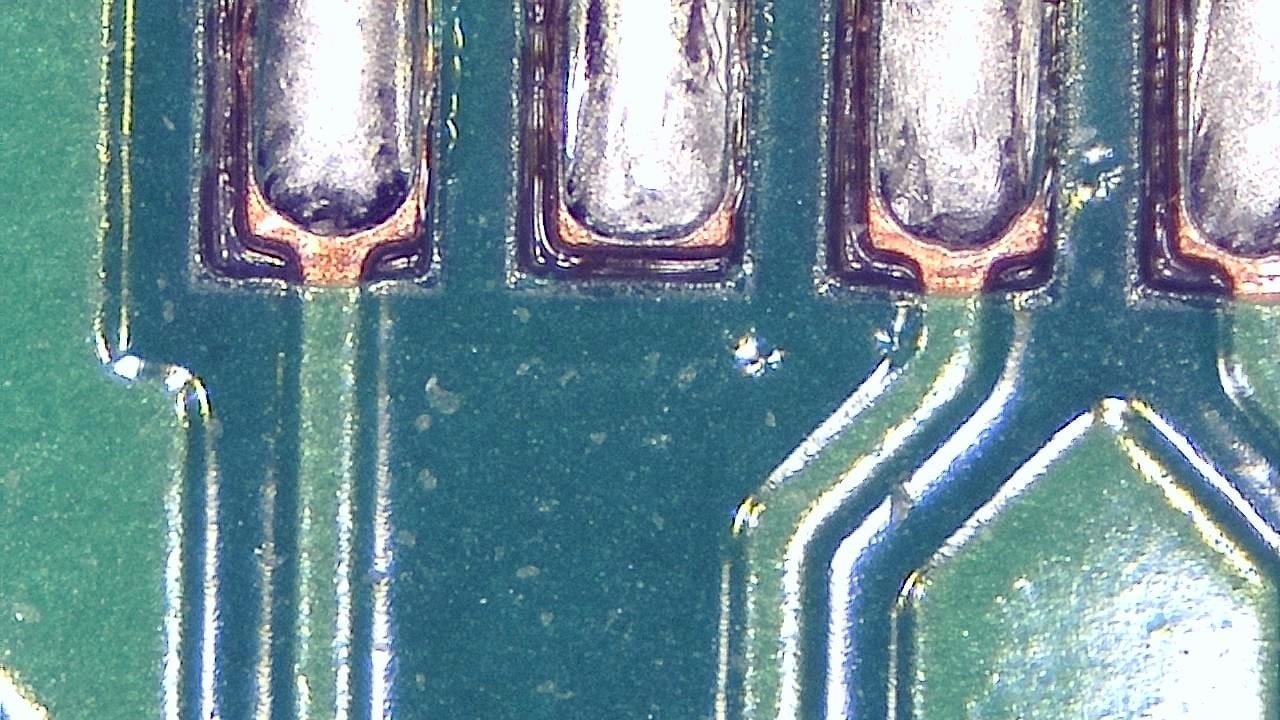

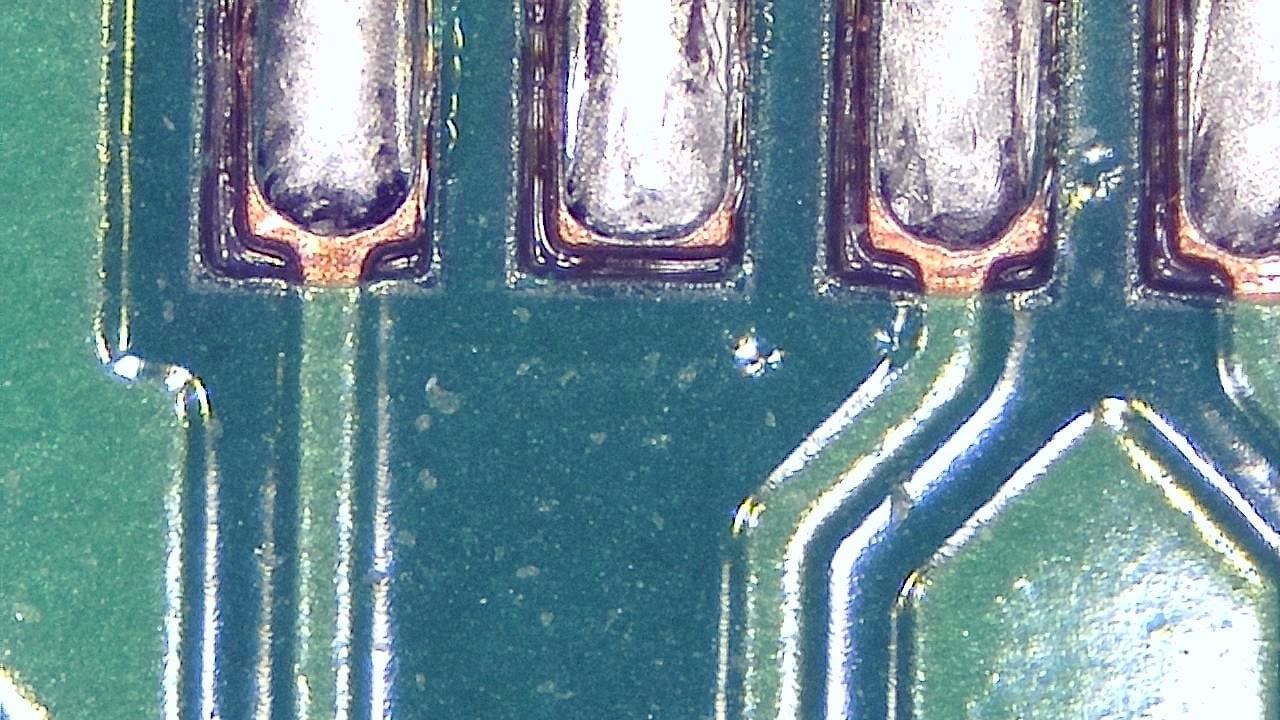

Image gallery
Click any image to enlarge
Practical examples
SMD soldering inspection
On an LED board production line, a quality technician uses Smart G-Scope to inspect samples from each lot, detecting solder bridges before boards move to the next process step.
Field-failure analysis
An engineer examines a returned board with intermittent failure. The microscope reveals a microcrack in a BGA joint caused by thermal stress, enabling a heatsink design correction.
Limitations & best practices
- Internal layer inspection requires X-ray or cross-section microscopy.
- Keep the work area clean to prevent cross-contamination.
- Calibrate magnification scaling for accurate measurements.
Frequently asked questions
Is a USB microscope useful for PCB inspection?
Yes. It is useful for visual checks of solder joints, components, traces, residues, and rework quality, especially when images need to be documented or shared.
Which stand is recommended for PCB work?
A precision stand is recommended because PCB inspection benefits from stable positioning, repeatable focus, and controlled sample movement.
